DRIPTROIT 71

1983 IH F-2674 Tri-axle Dump

Recommended Posts

This one began with the Ertl kit. The engine is a 6v-92T Detroit diesel. The dump bed was modified. It is meant to look like a refurbished truck that has found new life from someone wanting to start out in the dump trucking business.

48840094652_5ead50848c_k.jpgIMG_4675 by Brian Smith, on Flickr



48840109507_b7708be376_k.jpgIMG_4646 by Brian Smith, on Flickr



48839922806_8a3663a761_k.jpgIMG_4650 by Brian Smith, on Flickr



48840107957_249724206c_k.jpgIMG_4639 by Brian Smith, on Flickr



48839932876_205305282a_k.jpgIMG_4641 by Brian Smith, on Flickr

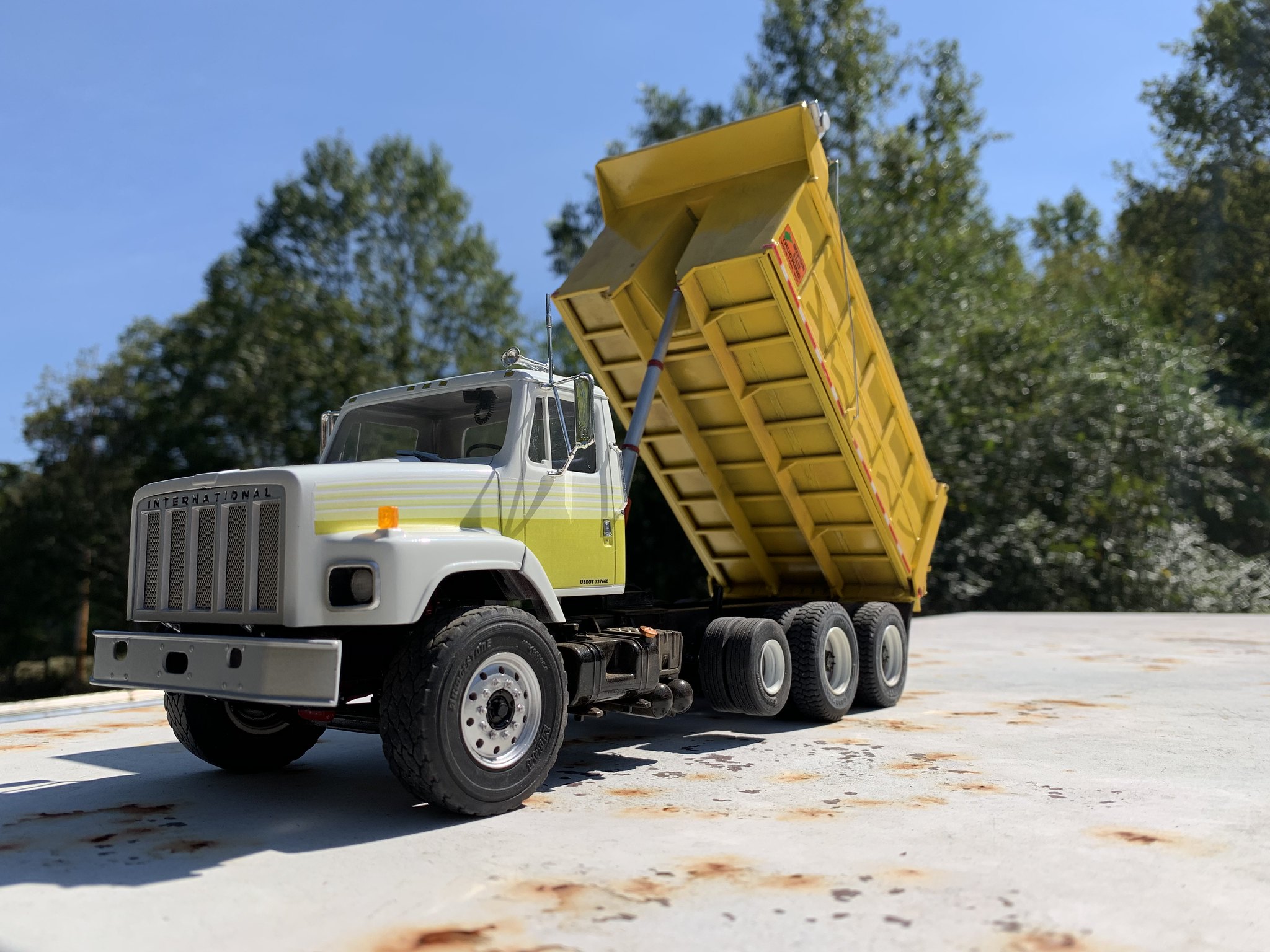

48839925471_d41ae0a341_k.jpgIMG_4625 by Brian Smith, on Flickr



48839930191_15cdea3e81_k.jpgIMG_4666 by Brian Smith, on Flickr



48840100277_4e0de1027c_k.jpgIMG_4676 by Brian Smith, on Flickr



48840101947_618dd93547_k.jpgIMG_4685 by Brian Smith, on Flickr

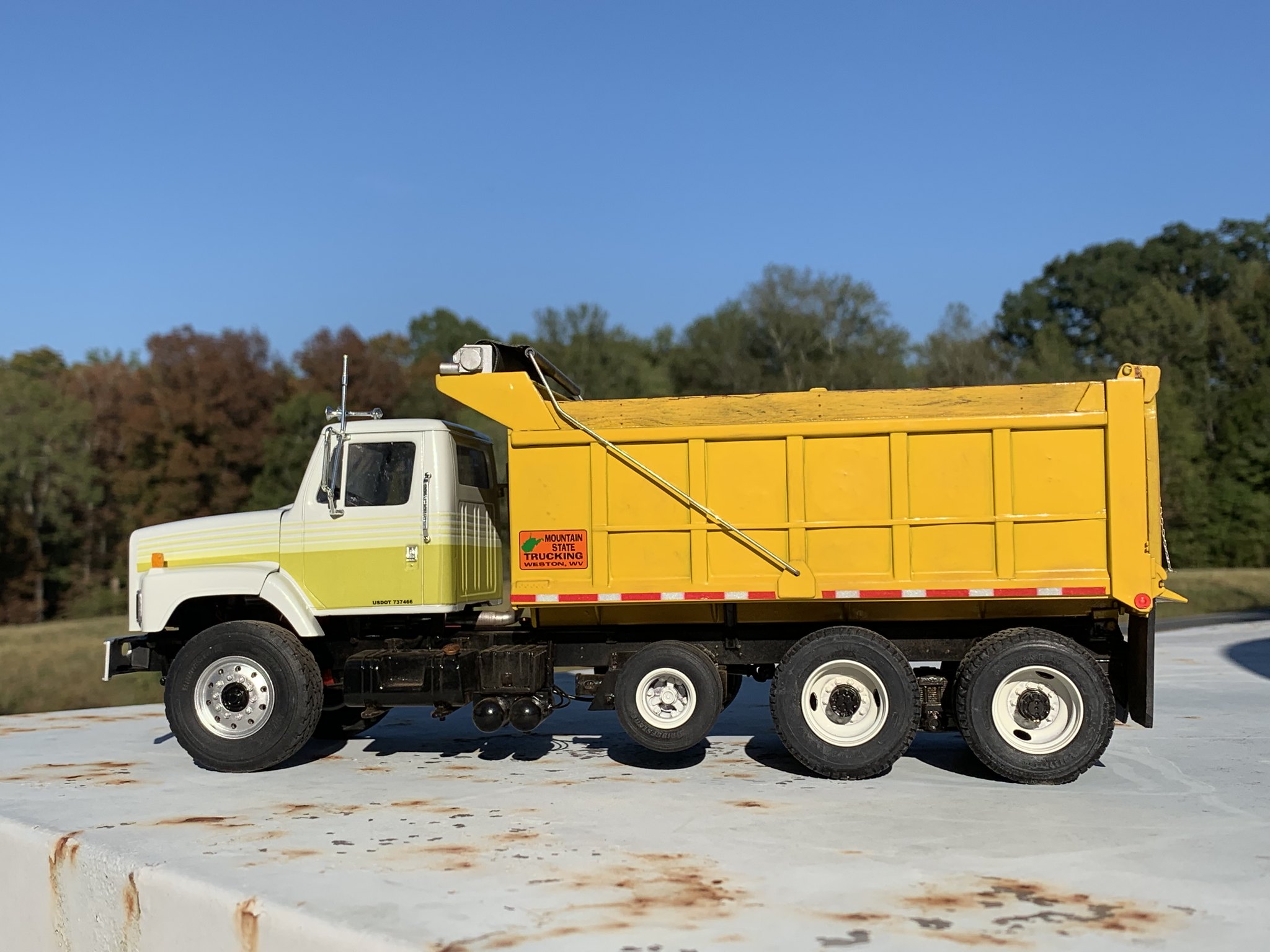

48839561153_0eff0fe923_k.jpgIMG_4693 by Brian Smith, on Flickr

  • Like 1

Share this post


Link to post
Share on other sites

Ya know, I think this may be one of your best builds. You seem to have nailed the look in every aspect of the build. I absolutely love this thing !

Share this post


Link to post
Share on other sites
2 hours ago, Tbill said:

Ya know, I think this may be one of your best builds. You seem to have nailed the look in every aspect of the build. I absolutely love this thing !

Thanks Tom! It was a learning experience.

Share this post


Link to post
Share on other sites

Brian, before I saw what you did with this box, I just wanted to throw them away they looked so ugly. Now I want to know exactly how you modified it so I can copy it. 🙂

Share this post


Link to post
Share on other sites
On 10/11/2019 at 11:27 PM, Casey said:

Fantastic build.  The bed even has a few dents/creases in it...very nice!



Thanks Casey!

On 10/13/2019 at 7:23 PM, Plybeep68 said:

Awesome truck, it's gorgeous

Thanks!

Share this post


Link to post
Share on other sites
On 10/12/2019 at 3:20 PM, Sam I am said:

Brian, before I saw what you did with this box, I just wanted to throw them away they looked so ugly. Now I want to know exactly how you modified it so I can copy it. 🙂

Sorry to take so long getting back to you. I've been out of town for a week for my wife and I's 20th anniversary.

The first thing that I did was widen the bed close to 4 scale inches. This was to make it look right to me with the larger tires. I then lowered the sides. These beds always looked like coal beds to me and way too tall. I then took the backside of a hobby knife and cut a groove in the lower outside brace. This is for my aluminum sheeting to slide into. I sheeted both sides with thin dented aluminum. i sheet all of the inside with aluminum too. I cut the upper board off of the kit side boards. I shortened the rear tailgate frame. I made new outside posts from stryrene. I made a new cab guard with a scratch built roll tarp. The tailgate is framed in styrene and sheeted with aluminum. I made a new cylinder from the kit base and aluminum tubing. The mudflaps are rubber, made from an inner tube so that they will flex when the bed is up.



Share this post


Link to post
Share on other sites

Thank you Brian.  Just the widening and lowering of the box makes a huge improvement over the kit version. Your dented treatment is just icing on the cake.

Share this post


Link to post
Share on other sites
On 10/24/2019 at 12:04 PM, Darrell J said:

Nice build.

What is the length of the box that you built.

Thanks!! I didn't change the length of the kit bed. It is real close to 15' in 1/25 scale or 180mm.

Share this post
